Embedded Type LED Underwater Light With 316 Stainless Steel For Swimming Pool Lighting
Technical Datas
| Model No. | AL-B4F |
| Input Voltage | DC12/24V |
| Power | 12W,36W |
| Dimension | Φ250mm x H79mm |
| Sleeve Dimension | Φ232mm x H126mm |
| Color | R/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 18pcs |
| Beam Angle | 25° |
| Dimmable | YES |
| Weight | 3.7Kg |
| Housing | SUS 316 Stainless Steel |
| Front Cover | SUS 316 Stainless Steel |
| Sleeve | PVC |
| IP Grade | IP68 |
| Carton Package Dimension | 42x22x26CM |
| Carton Package Weight | 9.5Kg |
| Carton Package Qty | 4pcs |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Dimension
Material & Manufacturing Technique
| Housing | Molding shaped stainless steel sus316#. |
| Front cover | Stainless steel sus316#. |
| Glass | Step tempered glass,T=10mm |
| Lens | All-in -one optional lens,efficiency ≥ 85% |
| Loading Capacity | Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs |
| Cable gland | IP68 PG-11 copper with nickel-coated. |
| LED | High power LED,CREE/OSRAM brand. |
| PCB | Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk |
| Driver | Constant current output Single color LED=2-circuit output RGB 3in1 LED=6-circuit output |
| Application environment | Temperature of water between -20℃-40℃ less than 1m depth |
| Power cable | H07RN-F 2x1.0m² L=3m(for single color) H07RN-F 4x1.0m² L=3m(for RGB) |
| Sleeve | PVC |
| Glue | Dow Corning |
Model Number Infos
| Model No. | Color | LED Qty | Voltage | Power |
| AL-B4F1802 | Red/Green/Blue/Yellow/White/WW/CW | 18pcs | 12V/24VDC | 18 x 2W |
| AL-B4F1805 | RGB 3in1 | 18pcs | 12V/24VDC | 18 x 3W |
| AL-B4F1805M | RGB 3in1 with DMX | 18pcs | 12V/24VDC | 18 x 3W |
| AL-B4F1807 | RGBW 4in1 | 18pcs | 12V/24VDC | 18 x 4W |
Competitive Advantage
- All materials are stricted choosing,and used the most popular brand in the world.
- Molding shaped stainless steel sus316#,good heat dissipation and corrosion resistant make sure the lamps has wide application and long lifetime.
- 8mm Tempered glass, able to bear huge pressure.
- CE, ROHS, IP68 approved.
- Honeycomb lens,light is soft and uniform,RGB 3in1,RGBW 4in1 colour mixture is beautiful.
- DMX 512 optional,easy to make your water lighting project magnificent.
Warm Tip & Warning
1) This underwater light has to be lightened underwater to keep the light heat dissipation.
Pls don't light it more than 15 minutes out of water!
2) The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this
will burn the LED underwater light.
3) The best height for this LED underwater light lighting is within 1M
4) The power cable of this LED underwater light can be customized.
5) If you need the lamp work with DMX512 signal,pls contact our customer service agent.
Aging Test Photos Sharing
Installation

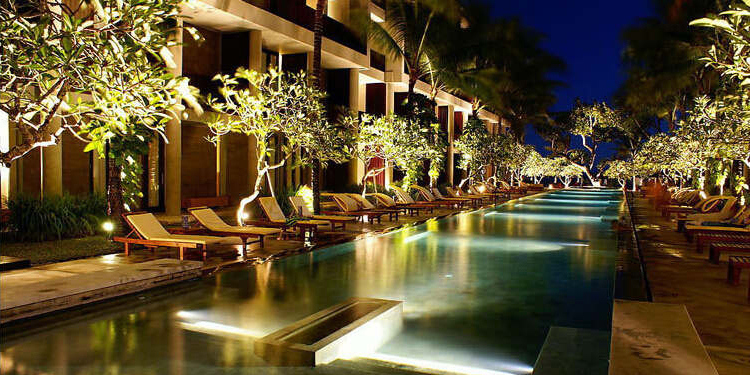

Application Scene
