12W 18W LED Landscape Spotlight Garden Light With Die-casting Aluminum Housing
Description
This is a spotlight with IP65 waterproof which can be used outdoor lighting.5pcs and 6pcs cree high power LED,gives the light very high lumen
and beautiful lighting effect with long lifetime.Each part of the light material was strictly choosen.
24VDC low voltage safe for people to touch,120V 240V voltage can be connect to your electricity supply directly without power transformer.
The light has spike and mounting base accessories to meet your different installation requirements.
Technical Datas
| Model No. | AL-3BCS |
| Input Voltage | 24VDC,120VAC,240VAC |
| Power | 5x2W,5x3W,6x2W,6x3W |
| Dimension | D102mm x H7138m |
| Color | Single color/RGB 3in1 |
| Color Temperature | 2000K 3000K 4000K 6000K |
| LED Chip | CREE 2W/3W high power LED |
| LED Qty | 5pcs,6pcs |
| Beam Angle | 15°/25°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP65 |
| Carton Package Dimension | 25*24*29CM/8pcs |
| Carton Package Weight | 8Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Item No. Information
| Model No. | Color | Power | Accessories |
| AL-3BCSB | Single Color | 5 x 2W | Spike |
| RGB 3in1 | 5 x 3W |
| RGB 3in1 with DMX512 | 5 x 3W |
| Single Color | 6 x 2W |
| RGB 3in1 | 6 x 3W |
| RGB 3in1 with DMX512 | 6 x 3W |
| AL-3BCSM | Single Color | 5 x 2W | Base |
| RGB 3in1 | 5 x 3W |
| RGB 3in1 with DMX512 | 5 x 3W |
| Single Color | 6 x 2W |
| RGB 3in1 | 6 x 3W |
| RGB 3in1 with DMX512 | 6 x 3W |
Dimension
Lighting Effect
- Use tope-ranking brand high-performance LED chip-CREE COB LED.
- Higher light transmission,uniform light mixing effect.
- RGBW 4in1 and warm white/white/natural white/cool white,colors are beautiful.
- Light angle can be adjusted to light the objects.
Colors And Dimmable Support
- 2000K 3000K 4000K 6000K RGB RGBW 3in1
- Triac,DALI,PWM,1-10V
Features
- High quality material Anti-corrosion and durable,aluminum housing and spike,perfect heat dissipation.
- Round and spike optional,easy to install.
- Famous brand of LED,Osram high power LED & CREE COB LED optional.
- Very low time-luminosity decay No RF interference
- Perfect for outdoor lighting such as landscape, garden, square, etc.
Material & Manufacturing Technique
| 1)12# Die-casting grey powder coated aluminum housing. |
| 2)Tooling shaped seal gasket. |
| 3) Step tempered glass,T=4mm |
| 4)IP68 PG-9 PVC cable gland. |
| 5)Optical reflector efficiency≥90% reflector. |
| 6)High power LED. |
| 7)Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk PCB. |
| 8)Constant current output,constant voltage input driver. |
| 9)H05RN-F 1.0mm² 0.75mm² power cable,L=2m |
| 10)PVC spike,die-casting aluminum mounting base. |
Photes

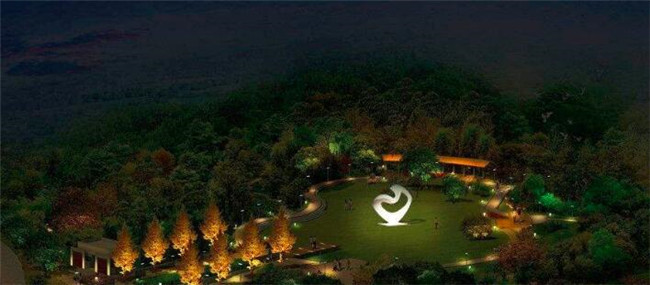

Application
Safety and accent lighting for walkways,Architectural lighting for corridors, pathways, and archways,Public park lightingLandscape lighting
Sculpture and statue base illumination,Courtyard lighting Not suitable for underwater use
